Clutcher® Wire Rope Hanging System
Replace time consuming threaded rods and angle struts with ducting wire supports and reinforcements when installing HVAC ductwork.

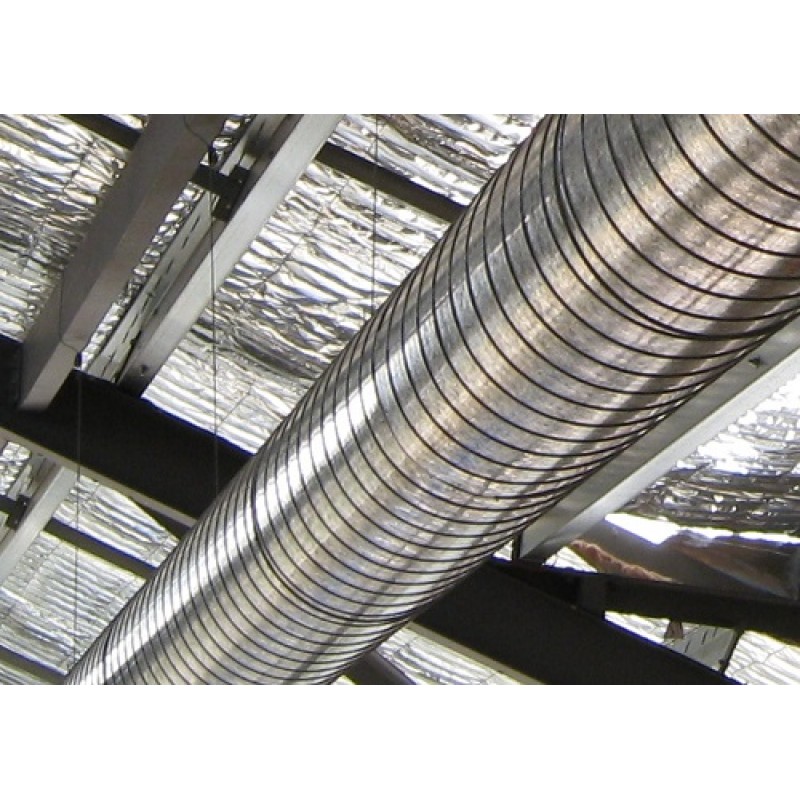

The Clutcher® wire rope hanging systems can be used to suspend a variety of indoor mechanical systems. Use them to support ductwork, cable trays or plumbing pipes.

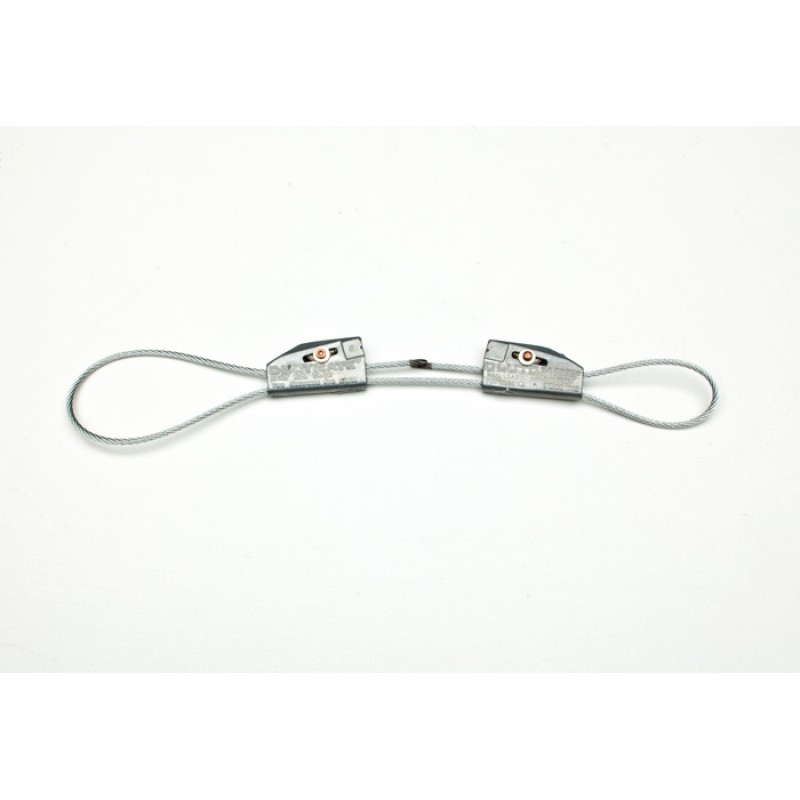

The Clutcher® hanger is available in a variety of sizes to support different weights. Items can be hung at angles up to 60° from vertical.
The lightweight design of the hangers makes it easy to carry them when working at heights. You need only a tool to cut the wire to length after installation.
Load Ratings
|
Clutcher Part No. |
Wire Rope Part No. |
Load Rating (Kg) |
|
DWM01-CL10 |
DWM50-WR10 |
56 |
|
DWM02-CL20 |
DWM51-WR20 |
113 |
|
DWM01-CL30 |
DWM53-WR30 |
295 |
|
Wire Rope Part No. |
Diameter (mm) |
Configuration |
Specified Breaking Load (Kg) |
|
DWM50-WR10 |
2 |
7x7 |
375 |
|
DWM51-WR20 |
3.2 |
7x7 |
770 |
|
DWM53-WR30 |
4.8 |
7x19 |
1904 |
